Bronze Vise Connectors
Bronze Vise Connectors
Vise connectors are used for grounding splice or tap connection in telecom, utility, and residential applications.
- Used for copper connections-splice, loop dead-end or service entrance tap.
- One piece design for easier, faster installation
- Bolt head design for use with standard ratchet wrench
- MATERIAL BODY: Copper Alloy
- HARDWARE: Stainless Steel
Description

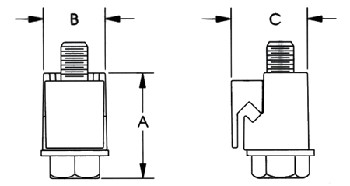

| Item No. | Conductor Diameter Range | Bolt Thread Size | Bolt Hex Size | A | B | C |
|---|---|---|---|---|---|---|
| BVC-2 | 6 sol – 2 sol | 5/16” | 9/16” | 1.33 | 0.81 | 0.93 |
| BVC-20 | 4 sol- 1/0 str | 5/16” | 9/16” | 1.72 | 0.80 | 1.03 |
| BVC-20S | 3 sol – 2/0 str | 3/8” | 9/16” | 1.91 | 0.94 | 1.19 |
| BVC-2S | 5 sol – 2 str | 5/16” | 9/16” | 1.52 | 0.79 | 0.93 |
| BVC-4 | 8 sol – 4 str | 5/16” | 9/16” | 1.13 | 0.73 | 0.83 |
| BVC-40 | 1/0 sol – 4/0 str | 3/8” | 9/16” | 2.14 | 0.95 | 1.27 |
| BVC-6 | 10 sol – 6 str | 1/4” | 3/8” | 0.88 | 0.64 | 0.73 |

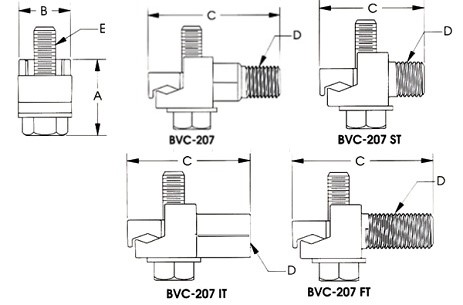

| Item No. | Conductor Diameter Range | Bolt Thread Size | Bolt Hex Size | A | B | C | D |
|---|---|---|---|---|---|---|---|
| BVC-207 | 8 sol – 1/0 str | 5/16” | 9/16” | 1.02 | 0.77 | 2.00 | 1/2”-13 |
| BVC-2207 FT | 8 sol – 1/0 str | 5/16” | 9/16” | 1.02 | 0.77 | 1.50 | 1/2”-13 |
| BVC-2070 IT | 8 sol – 1/0 str | 3/8” | 9/16” | 1.02 | 0.77 | 2.00 | 3/8”-16 |
| BVC-207 ST | 8 sol – 1/0 str | 5/16” | 9/16” | 1.02 | 0.77 | 1.75 | 1/2”-13 |
| Item No. | Messenger Diameter Range | Ground Tap Diameter | Bolt Thread Size | Bolt Hex Size | A | B | C |
|---|---|---|---|---|---|---|---|
| BVC-167P | 0.146” – 0.312” | 0.146” – 0.312” | 5/16” | 9/16” | 1.56 | 0.89 | 1.27 |
